FTDI UMFT4222EV-D FT4222H QSPI/I2C evaluation module USB Hi-Speed to SPI/I2C Mas

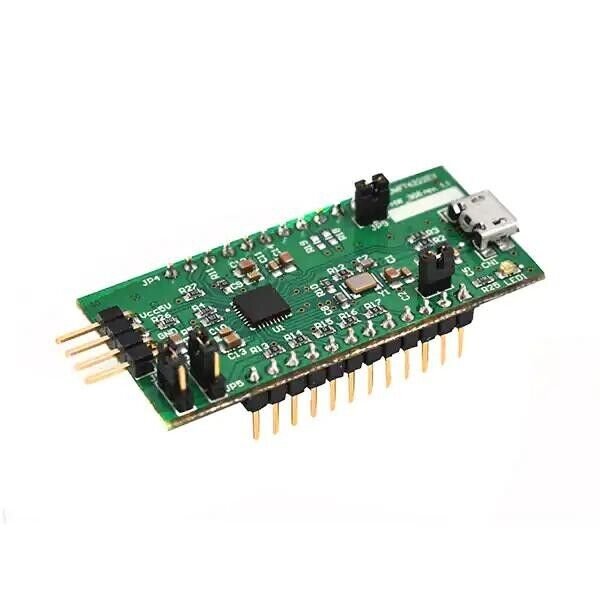

ABOVELIKE FTDI UMFT4222EV-D FT4222H QSPI/I2C evaluation module USB Hi-Speed to SPI/I2C Master/Slave VQFN-32 FTDI UMFT4222EV Development ModuleFTDI UMFT4222EV Development Module supports prototyping and development of the FT4222H High-Speed USB2.0 to QuadSPI/I?C Bridge ICs. Designed as a small PCB, UMFT4222EV plugs into a standard 0.8″ wide 24-pin DIP socket. Key UMFT4222EV features include: a single high-speed USB 2.0 chip (FT4222H) for flexible and configurable SPI/I?C interfaces; up to 28Mbps data transfer rate in SPI mode with quad data mode; support for up to 4 slave selection control pins in SPI master mode; support for single SPI Slave Mode with SCK operating frequency up to 20MHz; OTP memory for vendor-specific information; on-board jumper for FT4222H configuration mode: USB power configuration and VCCIO source selection; true 3.3V CMOS drive output and TTL input; FTDI’s royalty-free Direct (D2XX) drivers; and on-board USB Micro-B receptacle.FeaturesSingle Hi-Speed USB 2.0 chip (FT4222H) to flexible and configurable SPI/I?C interfaces.SPI interface support for Single / Dual / Quad SPI Master Mode with configurable target operating speed.Up to 28Mbps data transfer rate in SPI mode with quad data mode.Support up to 4 slave selection control pins in SPI master mode.Support Single SPI Slave Mode with SCK operating frequency up to 20MHz.I?C interface support 7-bits address and fully compatible to v2.1 and v3 specification for I2C Master/Slave Mode with configurable target operating speed for 100kbit/S standard mode, 400kbit/S fast mode 1Mbit/S Fast mode plus and 3.4Mbit/S high speed mode.Configurable GPIOs controlled by application software via USB busFully support USB2.0 suspend/resume and remote wakeupSupport Battery Charger DetectionOTP memory inside for USB Vendor ID (VID), Product ID (PID), device serial number, product description string and various other vendor specific data.USB Power Configurations; bus-powered and self-powered.On board jumper for FT4222H configuration mode, USB power configuration and VCCIO source selectionIntegrated power-on-reset circuit.True 3.3V CMOS drive output and TTL input. (operates down to 1.8V with external 1.8V power input to VCCIO)Support wide supply voltage range.USB2.0 Low operating and suspend current; 68mA (active-typ.) and 375uA (suspend-typ.).Configurable I/O pin output drive strength: 4mA (min) and 16mA (max)UHCI / OHCI / EHCI / XHCI host controller compatibleFTDI’s royalty-free Direct (D2XX) drivers eliminate the requirement for USB driver development in most casesSupplied PCB designed to fit a standard 20.2mm (0.8″) wide 24 pin DIP socket. Pins are on a 2.54mm (0.1″) pitch.On board USB Micro-B receptacle allows module to be connected to a PC.ApplicationsUSB to single mode SPI master controllerUSB to dual mode SPI master controllerUSB to quad mode SPI master controllerUSB to single SPI slave controllerUSB to I?C master interface controllerUSB to I?C slave interface controllerUtilizing USB to add system modularityIncorporate USB interface to enable PC transfers for development system communicationUSB Industrial ControlUSB Data AcquisitionAccessory connectivity solutions for mobiles and tabletsUSB dongle implementations for Software/Hardware Encryption and Wireless ModulesDetect USB dedicated charging ports, to allow for high current battery charging in portable devicesDriver SupportRoyalty free D2XX Direct Drivers (USB Drivers + DLL S/W Interface)Windows 8.1: 32, 64-bitWindows 8: 32, 64-bitWindows 7: 32, 64-bitWin XP, Server 2003 and Server 2008 Shipping Policy We are willing to ship to Worldwide by CHINA POST Airmail Service. Your order will be shipped within 1-2 business days once we receive your payment. We ship package via regular airmail, if you want to choose faster shipping way like EMS, DHL ..Please contact us ASAP. We are not responsible for any customs duty incurred at foreign customs. Buyers have to pay for the return cost and we pay the cost for reshipping. Payment Policy We gladly accept PayPal.Credit card payment can also be made via paypal. Payments are expected within 7 days after the last winning product is closed.Unpaid item(UPI) complaint will be filed with eCRATER upon non-receipt of payment. Saleterms Everything can be resolved without leaving negative/neutral feedback. Please email us, and we will resolve any problems for you. Thank you for your time to view our items. However if you have any questions please let us know and we will be glad to help. Good Luck looking! About Us Welcome to our store! Here is Abovelike Inc.We supply various products, including Computers & Networking ,Business & Industrial,Accessorie. High product quality, reasonable prices, excellent customer service and a reliable credit standing are our tenet. Contact Us If you have any problems or complaints, plz contact us via eCRATER message. We will give you a satisfactory solution without opening case or leaving negative/neutral feedback. Trust us.
